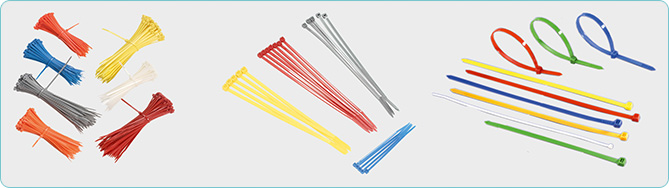

Cable Accessories Self Locking Nylon Cable Fasteners
Material: Nylon 6.6 UL Certified 94V-2
Operating Temperature: Static: -10°C to 120°C.
Colors: Natural, Black, Blue, Red, Grey, Customized Colors.
Manufactured & Tested as per international standard
“BS EN 62275 FOR CABLE MANAGEMENT SYSTEM”
“BS EN 62275 FOR CABLE MANAGEMENT SYSTEM”
Prices for colored cable ties will be 15% additional.
| PRODUCT CODE | LIST PRICE NATURAL & BLACK COLOR | L | Bundle Dia. | Min. Loop Tensile Strength | Packing Per Packet | Min. Packing | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| IN | MM | Min. | Max. | lbs | Kgs | Newton | 100 Nos. | Per Carton Pkt | ||
| FCCT-100x1.8 | 22.00 | 4 | 100 | 3 | 24 | 18 | 8 | 78.45 | 100 | 650 |
| FCCT-65x2.0 | 21.00 | 2.5 | 65 | 3 | 10 | 18 | 8 | 78.45 | 100 | 1000 |
| FCCT-80x2.0 | 24.00 | 3.2 | 80 | 3 | 18 | 18 | 8 | 78.45 | 100 | 800 |
| FCCT-100x2.0 | 26.00 | 4 | 100 | 3 | 24 | 18 | 8 | 78.45 | 100 | 650 |
| FCCT-100x2.5 | 30.00 | 4 | 100 | 5 | 24 | 22 | 10 | 98.07 | 100 | 600 |
| FCCT-150x2.5 | 42.00 | 6 | 150 | 5 | 24 | 22 | 10 | 98.07 | 100 | 350 |
| FCCT-200x2.5 | 53.00 | 8 | 200 | 5 | 50 | 22 | 10 | 98.07 | 100 | 200 |
| FCCT-150x3.2 | 46.00 | 6 | 150 | 5 | 35 | 26 | 12 | 117.68 | 100 | 250 |
| FCCT-200x3.2 | 60.00 | 8 | 200 | 5 | 50 | 26 | 12 | 117.68 | 100 | 200 |
| FCCT-250x3.2 | 105.00 | 10 | 250 | 5 | 65 | 26 | 12 | 117.68 | 100 | 170 |
| FCCT-300x3.2 | 120.00 | 12 | 300 | 5 | 75 | 26 | 12 | 117.68 | 100 | 140 |
| FCCT-150x3.6 | 64.00 | 6 | 150 | 5 | 35 | 44 | 18 | 176.52 | 100 | 250 |
| FCCT-200x3.6 | 92.00 | 8 | 200 | 5 | 50 | 44 | 18 | 176.52 | 100 | 200 |
| FCCT-250x3.6 | 118.00 | 10 | 250 | 5 | 65 | 44 | 18 | 176.52 | 100 | 170 |
| FCCT-300x3.6 | 135.00 | 12 | 300 | 5 | 75 | 44 | 18 | 176.52 | 100 | 140 |
| FCCT-200x4.8 | 125.00 | 8 | 200 | 5 | 50 | 50 | 23 | 225.55 | 100 | 150 |
| FCCT-250x4.8 | 155.00 | 10 | 250 | 5 | 65 | 50 | 23 | 225.55 | 100 | 150 |
| FCCT-300x4.8 | 200.00 | 12 | 300 | 5 | 75 | 50 | 23 | 225.55 | 100 | 120 |
| FCCT-350x4.8 | 230.00 | 14 | 350 | 5 | 85 | 50 | 23 | 225.55 | 100 | 100 |
| FCCT-368x4.8 | 250.00 | 15 | 368 | 5 | 100 | 50 | 23 | 225.55 | 100 | 100 |
| FCCT-400x4.8 | 260.00 | 16 | 400 | 5 | 110 | 50 | 23 | 225.55 | 100 | 100 |
| FCCT-450x4.8 | 320.00 | 18 | 450 | 5 | 130 | 50 | 23 | 225.55 | 100 | 90 |
| FCCT-550x4.8 | 360.00 | 22 | 550 | 5 | 160 | 50 | 23 | 225.55 | 100 | 70 |
| FCCT-200x7.6 | 250.00 | 8 | 200 | 6 | 50 | 75 | 35 | 343.23 | 100 | 80 |
| FCCT-300x7.6 | 320.00 | 12 | 300 | 6 | 75 | 75 | 35 | 343.23 | 100 | 80 |
| FCCT-380x7.6 | 460.00 | 15 | 380 | 6 | 102 | 75 | 35 | 343.23 | 100 | 70 |
| FCCT-450x7.6 | 550.00 | 18 | 450 | 6 | 130 | 75 | 35 | 343.23 | 100 | 60 |
| FCCT-500x7.9 | 800.00 | 20 | 500 | 6 | 150 | 75 | 35 | 343.23 | 100 | 35 |
| FCCT-550x7.9 | 900.00 | 22 | 550 | 6 | 160 | 75 | 35 | 343.23 | 100 | 35 |
| FCCT-650x9.0 | 1100.00 | 26 | 650 | 6 | 180 | 90 | 60 | 588.40 | 100 | 30 |
| FCCT-750x9.0 | 1400.00 | 30 | 750 | 6 | 185 | 90 | 60 | 588.40 | 100 | 10 |
| FCCT-920x9.0 | 1800.00 | 36 | 920 | 6 | 270 | 90 | 60 | 588.40 | 100 | 10 |
| FCCT-1220x9.0 | 2700.00 | 48 | 1220 | 6 | 305 | 90 | 60 | 588.40 | 100 | 10 |
| RELEASABLE CABLE FASTENERS | ||||||||||
| FCCT-150x3.6 | 100.00 | 6 | 150 | 2 | 35 | 44 | 18 | 176.52 | 100 | 250 |
| FCCT-200x4.8 | 180.00 | 8 | 200 | 3 | 50 | 50 | 23 | 225.55 | 100 | 150 |
| FCCT-250x4.8 | 250.00 | 10 | 250 | 3 | 65 | 50 | 23 | 225.55 | 100 | 150 |
| FCCT-200x7.4 | 300.00 | 8 | 300 | 3 | 50 | 75 | 35 | 343.23 | 100 | 150 |
