PBT Insulated Spacers

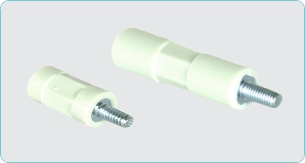

Product Type: CYLINDRICAL MALE FEMALE WITH HEX CENTRE
Material: PBT 30% GF UL Certified V0
Colour: Grey RAL 7035 (Light Grey)
Threading Inserts: Brass Tin plated or M.S.Tin Plated
M3 SERIES IN CIRCULAR WITH HEX. CENTRE
| Product Code | List Price per pcs. |
M | ØD | J | J2 Tol.+/-0.2 |
J3 Tol.+/-0.2 |
|---|---|---|---|---|---|---|
| FCM3CH-015 | 16.50 | 3 | 6.8 | 15 | 7 | 6 |
M4 SERIES IN CIRCULAR WITH HEX. CENTRE
| Product Code | List Price per pcs. |
M | ØD | J | J2 Tol.+/-0.2 |
J3 Tol.+/-0.2 |
|---|---|---|---|---|---|---|
| FCM4CH-015 | 18.00 | 4 | 10 | 15 | 7 | 6 |
| FCM4CH-020 | 22.50 | 4 | 10 | 20 | 7 | 6 |
| FCM4CH-025 | 27.00 | 4 | 10 | 25 | 7 | 6 |
| FCM4CH-123 | 59.00 | 6 | 14.5 | 123 | 7 | 6 |
PBT Insulated Spacers

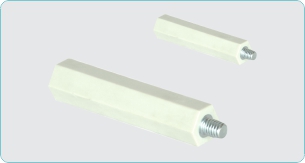

Product Type: HEX MODEL MALE FEMALE
Material: PBT 30% GF UL Certified V0
Colour: Grey RAL 7035 (Light Grey)
Threading Inserts: Brass Tin plated or M.S.Tin Plated
M6 SERIES WITH HEX. CENTRE
| Product Code | List Price per pcs. |
M | A/F | J | J2 Tol.+/-0.2 |
J3 Tol.+/-0.2 |
|---|---|---|---|---|---|---|
| FCM6H-020 | 24.00 | 6 | 13 | 20 | 8 | 7 |
| FCM6H-025 | 26.00 | 6 | 13 | 25 | 8 | 7 |
| FCM6H-030 | 28.00 | 6 | 13 | 30 | 8 | 7 |

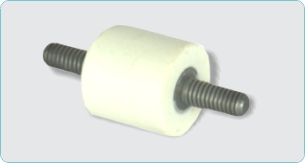

DMC Spacers Cylindrical Male-Male
Material: DMC ROHS & REACH COMPLIANCE
Colour: White
| Product Code | List Price | L (mm) | Thread H1 | Thread H2 | Dia. D | P1 (mm) | P2 (mm) |
|---|---|---|---|---|---|---|---|
| FCCMM-03 | 20.00 | 10 | M3 | M3 | 10 | 10 | 9.5 |
