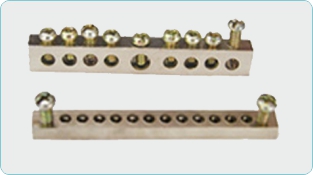

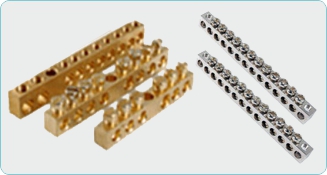

Control Panel Accessories Extruded Terminal Bar (Without base)
Material: Brass CZ.
Screws: M.S.Yellow passivation
Terminal Bar are suitable for use with FLU-CON make bases in Polyamide, Bakelite & DMC.

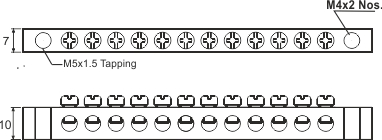

15 Amps Terminal Bar
| Product Code | Description | Number of Holes | Length MM | Weight per pcs (Gms) | List Price |
|---|---|---|---|---|---|
| FCTB-15-01 | 15 Amp x 4 way | 5 | 50 | 22.63 | 66.00 |
| FCTB-15-02 | 15 Amp x 6 way | 7 | 64 | 28.48 | 81.00 |
| FCTB-15-03 | 15 Amp x 8 way | 9 | 78 | 34.33 | 98.00 |
| FCTB-15-04 | 15 Amp x 10 way | 11 | 92 | 40.18 | 115.00 |
| FCTB-15-05 | 15 Amp x 12 way | 13 | 106 | 46.03 | 132.00 |
| FCTB-15-06 | 15 Amp x 14 way | 15 | 120 | 51.88 | 151.00 |
| FCTB-15-07 | 15 Amp x 16 way | 17 | 134 | 57.73 | 167.00 |
| FCTB-15-08 | 15 Amp x 18 way | 19 | 148 | 63.58 | 187.00 |
| FCTB-15-09 | 15 Amp x 20 way | 21 | 162 | 69.43 | 203.00 |
| FCTB-15-010 | 15 Amp x 22 way | 23 | 176 | 75.28 | 219.00 |
| FCTB-15-011 | 15 Amp x 24 way | 25 | 190 | 81.13 | 233.00 |
| FCTB-15-012 | 15 Amp x 26 way | 27 | 204 | 86.98 | 249.00 |
| FCTB-15-013 | 15 Amp x 28 way | 29 | 218 | 92.83 | 273.00 |
| FCTB-15-014 | 15 Amp x 30 way | 31 | 232 | 98.67 | 288.00 |
| FCTB-15-015 | 15 Amp x 32 way | 33 | 246 | 104.52 | 320.00 |
| FCTB-15-016 | 15 Amp x 34 way | 35 | 260 | 110.37 | 334.00 |
| FCTB-15-017 | 15 Amp x 36 way | 37 | 274 | 116.22 | 357.00 |

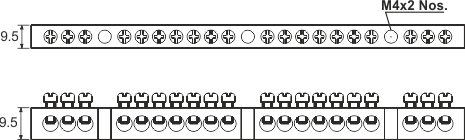

30 Amps Terminal Bar
| Product Code | Description | Number of Holes | Length MM | Weight per pcs (Gms) | List Price |
|---|---|---|---|---|---|
| FCTB-30-01 | 30 Amp x 4 way | 5 | 55 | 28.45 | 81.00 |
| FCTB-30-02 | 30 Amp x 6 way | 7 | 70 | 35.70 | 103.00 |
| FCTB-30-03 | 30 Amp x 8 way | 9 | 85 | 42.94 | 111.00 |
| FCTB-30-04 | 30 Amp x10 way | 11 | 100 | 50.18 | 147.00 |
| FCTB-30-05 | 30 Amp x 12 way | 13 | 115 | 57.42 | 167.00 |
| FCTB-30-06 | 30 Amp x 14 way | 15 | 130 | 64.67 | 190.00 |
| FCTB-30-07 | 30 Amp x 16 way | 17 | 145 | 71.91 | 210.00 |
| FCTB-30-08 | 30 Amp x 18 way | 19 | 160 | 79.15 | 232.00 |
| FCTB-30-09 | 30 Amp x 20 way | 21 | 175 | 86.39 | 252.00 |
| FCTB-30-010 | 30 Amp x 22 way | 23 | 190 | 93.64 | 274.00 |
| FCTB-30-011 | 30 Amp x 24 way | 25 | 205 | 100.88 | 297.00 |
| FCTB-30-012 | 30 Amp x 26 way | 27 | 220 | 108.12 | 318.00 |
| FCTB-30-013 | 30 Amp x 28 way | 29 | 235 | 115.36 | 338.00 |
| FCTB-30-014 | 30 Amp x 30 way | 31 | 250 | 122.61 | 360.00 |
| FCTB-30-015 | 30 Amp x 32 way | 33 | 265 | 129.85 | 381.00 |
| FCTB-30-016 | 30 Amp x 34 way | 35 | 280 | 137.09 | 404.00 |
| FCTB-30-017 | 30 Amp x 36 way | 37 | 295 | 144.33 | 416.00 |

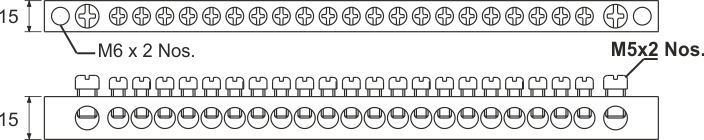

60 Amps Terminal bar
| Product Code | Description | Number of Holes | Length MM | Weight per pcs (Gms) | List Price |
|---|---|---|---|---|---|
| FCTB-60-01 | 60 Amp x 4 way | 5 | 63 | 78.73 | 214.00 |
| FCTB-60-02 | 60 Amp x 6 way | 7 | 83 | 102.48 | 278.00 |
| FCTB-60-03 | 60 Amp x 8 way | 9 | 103 | 126.23 | 343.00 |
| FCTB-60-04 | 60 Amp x10 way | 11 | 123 | 149.98 | 406.00 |
| FCTB-60-05 | 60 Amp x 12 way | 13 | 143 | 173.73 | 473.00 |
| FCTB-60-06 | 60 Amp x 14 way | 15 | 163 | 197.48 | 536.00 |
| FCTB-60-07 | 60 Amp x 16 way | 17 | 183 | 221.23 | 600.00 |
| FCTB-60-08 | 60 Amp x 18 way | 19 | 203 | 244.98 | 663.00 |
| FCTB-60-09 | 60 Amp x 20 way | 21 | 223 | 268.83 | 728.00 |
| FCTB-60-010 | 60 Amp x 22 way | 23 | 243 | 297.48 | 793.00 |
| FCTB-60-011 | 60 Amp x 24 way | 25 | 263 | 316.23 | 856.00 |
| FCTB-60-012 | 60 Amp x 26 way | 27 | 283 | 339.98 | 920.00 |
| FCTB-60-013 | 60 Amp x 28 way | 29 | 303 | 363.73 | 986.00 |
| FCTB-60-014 | 60 Amp x 30 way | 31 | 323 | 387.48 | 1050.00 |
| FCTB-60-015 | 60 Amp x 32 way | 33 | 343 | 411.23 | 1113.00 |
| FCTB-60-016 | 60 Amp x 34 way | 35 | 363 | 434.98 | 1177.00 |
| FCTB-60-017 | 60 Amp x 36 way | 37 | 383 | 458.72 | 1243.00 |
Also Available in meter Length and as per Customer Drawing or Specification.
